07/02/2026
698
Information on the sidewall of a car tire is applied directly in the form of a relief imprint during vulcanization and is part of the product design, and not an external marking or reference sticker. These symbols are formed simultaneously with the carcass and tread, therefore they cannot be changed or removed without physically damaging the tire. It is the tire marking that fixes the technical limits within which a specific model is able to operate without loss of strength, stability and resource, and is the only universal source of data on the characteristics of rubber, regardless of the brand or sales market.
The design parameters of the tire are laid down by the manufacturer at the stage of calculating the cord, rubber compound and profile, and tire marking serves as a standardized way to convey these parameters to the user and service. Profile width, height to width ratio, mounting diameter, type of construction, load and speed indices are not an arbitrary set of numbers. Each element of the tire marking corresponds to specific physical properties of the product, such as the permissible deformation of the sidewall, the temperature stability limit of the mixture or the maximum load on the cord threads.
Tire geometry is determined by the first numerical values in the tire marking, which specify the actual dimensions of the product in the installed and inflated state. Profile width affects the contact area with the road and the pressure distribution in this area, while profile height determines the ability of the sidewall to elastic deformation. Landing diameter is rigidly tied to the size of the rim and determines the rolling radius of the wheel.
The mechanical strength of the tire is encoded in the tire marking through the load index, which indicates the maximum mass that can be carried by one wheel at the standard pressure. This value is obtained as a result of bench tests and takes into account not only static weight, but also dynamic loads that occur when driving, braking and cornering. Exceeding the load index changes the operating mode of the carcass, increasing internal friction between the layers, which leads to accelerated heating and degradation of the material.
Speed limits are also recorded in tire markings and are directly related to thermal processes inside the rubber. With increasing speed, the frequency of deformation cycles increases, and therefore the amount of heat released due to hysteresis. A tire designed for a lower speed index is not able to effectively dissipate this heat, so exceeding the permissible speed leads to local overheating and loss of structural integrity. Tire marking in this case acts as a limit tolerance, not a recommendation.
The type of construction, indicated in the tire marking by letter symbols, reflects the method of laying the cord and the direction of operation of the power elements. The radial construction has a different reaction to vertical and lateral loads than the diagonal one, which directly affects comfort, handling and wear of the suspension. The choice of construction cannot be accidental, since the car is designed taking into account the specific stiffness of the tire and its ability to absorb or transmit vibrations.
Additional elements of the tire marking contain data on certification standards, seasonal purpose, permissible pressure, direction of rotation or tread asymmetry. These designations specify the conditions in which the tire demonstrates the calculated properties and allow it to be correctly integrated into a specific operating mode.

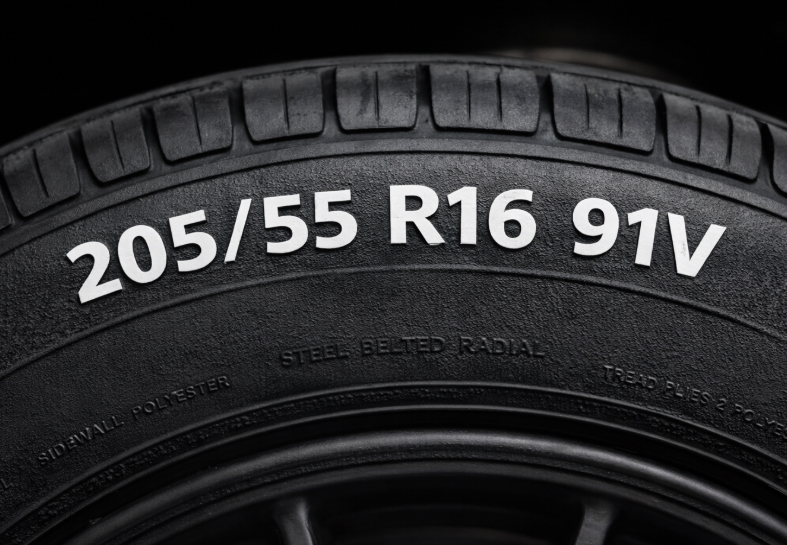

The size of a car tire is specified by a strictly defined sequence of numbers and letters that are applied to the sidewall during the formation of the tire in a mold, and this fragment of the tire marking is used as a basic guideline for selecting rubber for a specific car. The size designation is always present on both sides of the tire, but it can only be readable from one side, since the second side is oriented inside the car. Tire size marking is a universal standard and does not depend on the manufacturer, country of manufacture or class of car.
A typical example of tire size marking looks like 205/55 R16, where each element has a clearly defined engineering meaning. The first number in the tire size designation indicates the nominal profile width in millimeters, measured between the outer sidewalls of the tire in the installed and inflated state. This value determines the contact area with the road and affects the load distribution in the tread zone. Increasing the width without changing other parameters increases potential grip, but at the same time changes rolling resistance and the load on the suspension elements.
The second number in the tire size designation indicates the ratio of sidewall height to profile width in percent. In the example of 205/55, the sidewall height is 55 percent of 205 millimeters. This parameter directly affects tire stiffness and its ability to deform. A lower profile means less elastic deformation of the sidewall, more precise steering response and higher transmission of shock loads to the suspension. A higher profile provides better filtering of irregularities, but changes the behavior of the car in corners due to a greater deformation stroke.
The letter R in the tire size designation indicates radial carcass construction, which is used in the vast majority of passenger cars and light commercial vehicles today. Radial construction means that the cord threads are arranged perpendicular to the direction of travel, which provides a stable contact patch shape and a predictable response to loads. Older or specialized tires may have a different design, but modern cars are designed specifically for radial tires, and this is built into the suspension and steering settings.
The last number in the tire size marking means the rim mounting diameter in inches. In the example of R16, this means that the tire is designed to be mounted on a 16-inch rim. This parameter is rigidly fixed and does not allow deviations, as it determines the geometry of the tire bead and the method of fixing it to the rim. A mismatch in the mounting diameter leads to the impossibility of installation or to a violation of tightness, which makes operation dangerous.
The tire marking may contain additional symbols directly next to the size, which specify the design features. For example, the XL designation indicates a reinforced tire with increased load capacity at the same size. This means a different carcass and greater sidewall stiffness, which changes the behavior of the car under load. Such tires are used on vehicles with a large mass or when operating with a full load.
Tire size marking is directly related to speedometer calibration, ABS and stabilization system operation. Changing the outer diameter of the wheel, even within the same size, but with a different profile, changes the number of wheel revolutions per kilometer. In real operation, this affects the accuracy of speed readings, braking algorithms and electronics intervention.

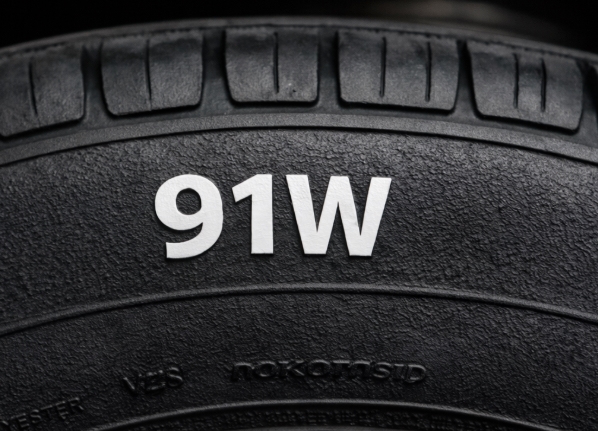

The tire speed index is recorded in the marking in the form of a letter designation, which is applied to the sidewall next to the size and load index and is a direct reflection of the limit to which the tire design is able to operate without losing mechanical stability. This value indicates the maximum speed at which the tire maintains the integrity of the carcass, a stable shape of the contact patch and a controlled temperature regime. Speed tolerance marking is based on bench tests, where the tire operates for a long time under a given load with a gradual increase in speed to the limit value.
With increasing speed, the frequency of deformations increases, and each cycle is accompanied by energy losses due to internal friction of the material. This phenomenon is called hysteresis and it is it that determines the heating of the tire in motion. A tire with a lower speed index has a different cord structure and mixture composition, which are not designed for intensive heat generation. When the permissible speed is exceeded, heat accumulates faster than it is removed, which leads to local overheating and destruction of the bonds between the layers.
The letter designations of the speed index are standardized and correspond to specific numerical values. For example, the T index corresponds to a maximum speed of 190 km/h, H - 210 km/h, V - 240 km/h, W - 270 km/h. These values are not peak or short-term, but mean the tire's long-term operation at the corresponding speed under the rated load. The speed tolerance marking takes into account not only the strength of the tread, but also the stability of the sidewall, since it is the sidewall that undergoes the greatest deformation at high speeds.
Real-world operation shows that the speed index has a direct impact on the behavior of the car even when driving below the limit values. Tires with a higher speed index usually have a stiffer carcass and a less deformed sidewall, which provides a more precise response to steering and a more stable trajectory at speed. At the same time, such a design absorbs small irregularities worse and transmits more high-frequency vibrations to the suspension. A lower speed index means more elasticity, but also a greater deformation range when maneuvering.
The relationship between the speed index and temperature is especially noticeable when driving with a full load. Even a tire with a formally sufficient speed index can overheat if the car is driven at high speed for a long time with overload or insufficient pressure. Speed tolerance markings are designed for standard conditions, and any deviation changes the thermal balance. In such situations, destruction begins in the shoulder zones, where cord stresses are maximum and heat dissipation is the worst.
Seasonal tires have their own speed index features. Winter models are often marked withi lower speed tolerances, since their rubber compound is oriented to work at low temperatures and has different mechanical properties. At high speed in warm weather, such rubber passes into an excessively soft state, which increases deformations and heating. The speed index in tire markings should always be considered together with seasonality and actual operating conditions.
The marking of speed tolerances is not a recommendation for driving style and does not mean that the car should constantly move at the maximum speeds. It fixes the safety limit beyond which uncontrolled degradation of the material begins. Using tires with a speed index lower than that specified by the vehicle manufacturer changes the operation of the suspension, braking system and electronic assistants, since all these systems are calibrated taking into account the stiffness and stability of the tire at speed.

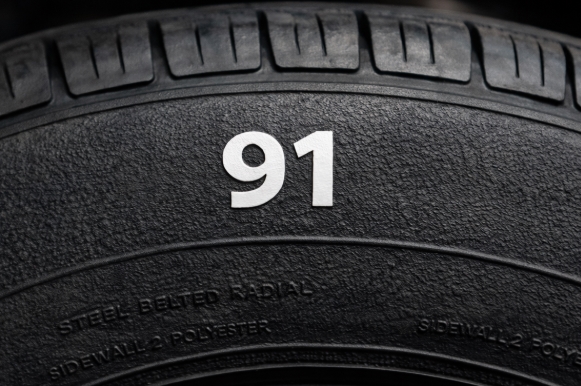

The tire load index is indicated by a numerical code in the marking next to the speed index and reflects the maximum permissible mass that one tire can carry in the specified mode. This value is applied to the sidewall during tire molding and is part of a standardized system that is the same for all manufacturers. The numerical index does not contain information in kilograms directly, but corresponds to a specific load according to the correspondence tables used in the tire industry.
The mechanical basis of the load index is related to the operation of the tire carcass under the action of vertical forces. The mass of the vehicle through the rim and bead is transmitted to the cord, which perceives the load in the form of tension and bending. As the load increases, the deformation of the sidewall and the tension in the cord threads increase. The load index fixes the limit at which these tensions remain within the permissible range without disturbing the structure of the material.
The numerical value of the load index is determined based on the results of tests where the tire operates under a given mass and pressure for a long time. During such tests, the temperature, tread shape and the condition of the carcass after loading are monitored. If the mass exceeds the value specified in the index, the deformation ceases to be elastic and enters the zone of accelerated wear and structural changes. It is this threshold that is fixed in the marking.
The value of the load index is always calculated for one tire, and not for an axle or the entire vehicle. For a four-wheeled vehicle, the total permissible load is determined by multiplying the value for one tire by four, taking into account the distribution of mass on the axles. In this case, the front and rear axles can carry a different proportion of the total mass, which affects the requirements for tires on each axle, but the load index itself remains a universal numerical parameter.
Air pressure directly affects the tire's ability to carry a load, but the load index does not change with pressure changes. It sets the limit at which the carcass is designed to operate at the standard pressure. Reducing pressure at the same mass leads to increased sidewall deformation, while increasing pressure reduces the contact area and changes the stress distribution in the tread. The load index in this case remains a fixed design characteristic.
Different load indices can occur in tires of the same size. This means that with the same geometry, different cord thicknesses, different number of layers or different type of material are used. Such tires have different sidewall stiffness and different safety margins, which is reflected exclusively by the numerical code in the marking. Visually, these differences may be imperceptible, but from a load point of view they are fundamental.
The tire load index does not describe the behavior of the car, but fixes the permissible limit of the material's operation under static and dynamic forces. Any excess of this limit means a change in the cord operating mode, increased internal friction and an increase in temperature in the sidewall area. For this reason, the load index is a mandatory element of the marking and is used as a basic parameter when selecting tires based on the weight of the vehicle.

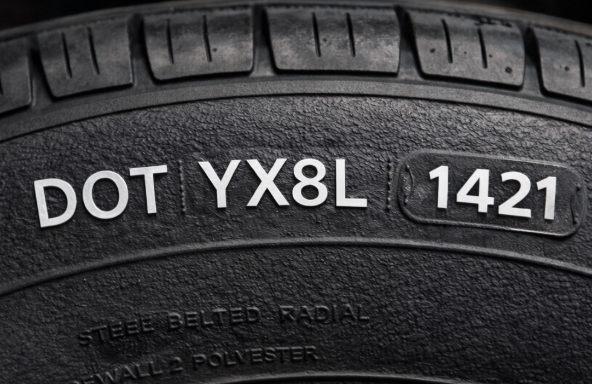

The tire manufacturing date is applied to the sidewall in the form of a four-digit numerical code and is part of the mandatory marking used to identify the age of the rubber product. This code is placed in an oval or rectangular field, usually only on one side of the tire, which is due to the peculiarities of the mold and the layout of the service markings. The tire manufacturing date marking is formed during production along with other sidewall elements and cannot be changed without mechanical intervention.
The four digits in the tire manufacturing date marking have a fixed structure, where the first two digits indicate the calendar week number, and the next two indicate the year of manufacture. For example, the code 3522 means that the tire was manufactured in the 35th week of 2022. This format allows you to accurately determine the age of the tire to the week, which is important for assessingki condition of the rubber compound and carcass. Older tires manufactured before 2000 had three-digit markings, but such products are practically not found in modern operation.
The physical properties of rubber change over time, regardless of whether the tire is used or not. Polymer chains in the rubber compound gradually lose elasticity due to oxidation, evaporation of plasticizers and the action of ultraviolet light. Marking the date of manufacture of the tire allows you to determine at what stage of this natural aging the material is. Even in the absence of mileage, over time the rigidity of the tread increases and the ability of the rubber to adapt to micro-unevenness of the road surface decreases.
A tire stored in a dark and cool room retains its properties longer than one that has been exposed to the sun or temperature changes. In this case, the tire manufacturing date marking remains the only objective guide to determining the actual age of the product, since the external appearance does not always reflect the internal state of the material.
The tire carcass is also subject to age-related changes, although these processes are less noticeable from the outside. Metal or textile cord threads lose their original characteristics over time due to microcorrosion or material fatigue. The tire manufacturing date marking allows you to correlate the age of the carcass with the expected service life and assess the safety margin remaining in the product. This is important when using tires with low tread wear but significant calendar age.
The tire manufacturing date marking is not related to the date of sale or start of operation. The tire can be sold several years after production and still have a completely new appearance. Calendar age affects grip, braking properties and stability of behavior regardless of actual mileage.
Placing the date code on one side of the tire sometimes makes it difficult to check it after installing the wheel on the car. In such cases, it is necessary to remove the wheel or use a mirror to read the tire manufacturing date marking. This is not a design flaw, but is due to the priority of other technical markings that are duplicated on both sides of the sidewall.
The tire manufacturing date marking performs the function of identifying the age of the material and allows you to correlate it with the physical properties of the rubber and carcass. It does not assess quality, does not guarantee condition and does not replace inspection, but provides an accurate time reference, without which it is impossible to correctly interpret other tire characteristics.

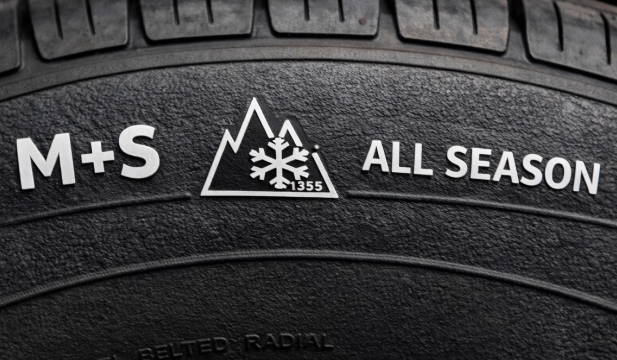

The seasonal purpose of a tire is determined by a set of symbols and inscriptions on the sidewall, which indicate the composition of the rubber compound and the geometry of the tread, and not by an abstract reference to the season. The seasonal marking of tires is applied during production and is part of the general marking, which allows you to distinguish tires designed for different temperature ranges and conditions of contact with the road surface. These markings are read directly from the sidewall and do not depend on the marketing name of the model.
The M+S marking is one of the most common and indicates the suitability of the tire for use on dirt and snow, but does not contain strict requirements for braking or traction characteristics. This seasonal tire marking means a specific tread geometry with larger blocks and wider channels for dispersing loose materials, but it does not guarantee effective performance on cold asphalt. The composition of the rubber compound in such tires can vary significantly depending on the manufacturer, which explains the different behavior of tires with the same M+S symbol.
The symbol in the form of a mountain with three peaks and a snowflake inside, known as 3PMSF, is applied to tires that have passed standardized tests for grip on compacted snow. This seasonal tire marking is not related to the tread shape per se, but to the proven level of traction in cold conditions. The presence of this symbol means that the rubber compound retains elasticity at low temperatures and does not go into a hard state, typical of summer tires.
The designation All Season or 4 Seasons is used for tires with balanced properties that combine elements of summer and winter tread. The seasonality marking of tires of this type indicates a compromise design, where the tread has a moderate number of sipes, and the rubber compound operates in a wider temperature range. Such tires are not oriented to extreme conditions, but provide stable behavior in the off-season, which is explained by the average stiffness of the material and the moderate depth of the tread channels.
The type of tread is also reflected in the tire marking through additional symbols or text designations. A directional tread is identified by an arrow or the inscription Rotation, which indicates the permissible direction of rotation. Such geometry optimizes water drainage and reduces the risk of aquaplaning. An asymmetric tread is marked with the words Inside and Outside, which indicate the correct orientation of the tire relative to the vehicle. In this case, different zones of the tread perform different functions.sion, the inner one is responsible for water drainage, the outer one for stability in turns.
Seasonality and tread type markings allow you to determine the conditions in which the tire maintains the calculated shape of the contact patch and the predicted response to load. Ignoring these markings leads to the use of rubber outside the temperature and mechanical range for which it was created.

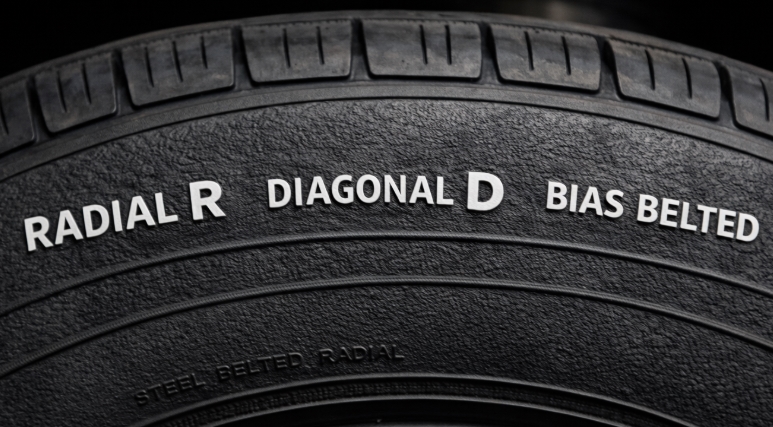

The type of tire construction is reflected in the marking through letter designations that indicate the method of laying the cord and the direction of operation of the carcass's power elements. This marking is applied next to the size and is the basic characteristic that determines the tire's stiffness, its response to load and the ability to maintain its shape during movement.
The most common option is the radial construction, which is indicated by the letter R in the marking. In such a tire, the cord threads are arranged radially from bead to bead, perpendicular to the direction of travel. This ensures a stable tread shape, uniform pressure distribution in the contact patch, and reduced internal energy losses. The radial design allows the sidewall to deform independently of the tread part, which reduces heating and increases the resource.
The diagonal design, which may be indicated by the letter D or the absence of the letter R, has a cord located at an angle to the direction of travel. In such a tire, the deformation of the tread and sidewall is connected more tightly, which increases strength at high loads, but increases internal friction and heating. This type of design is found mainly in specialized equipment, where the priority is endurance, not steering accuracy.
There is also a breaker or combined design, which is indicated by the letter B. It combines the features of the diagonal cord with an additional breaker layer that reinforces the tread zone. This type of construction marking is less common and is typical for certain categories of tires where a balance between rigidity and stability is required.
The type of cord used in a tire is directly related to the permissible deformations and loads. Textile cord provides greater elasticity, while metal cord increases rigidity and shape stability. Although the cord material is usually not listed in a separate marking, it is taken into account in the speed and load indices, which are always read together with the type of construction.

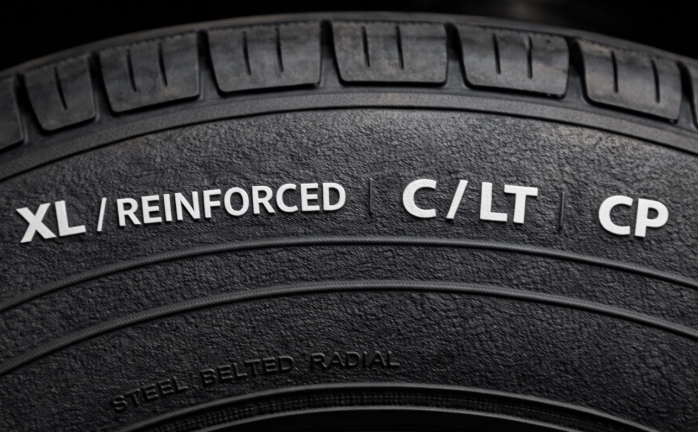

A reinforced version of a tire is indicated by separate letter symbols in the marking and indicates a changed carcass design while maintaining the basic size. Such markings are applied to the sidewall along with the size and indices and allow you to distinguish tires with the same geometry but different load-bearing capabilities.
The designation XL or Extra Load means that the tire has a reinforced carcass and is designed for a larger weight at a higher operating pressure. Such tires use a different cord thickness or additional layers, which reduces sidewall deformation under load. The tread geometry remains unchanged, but the nature of the transmission of vertical forces from the car to the road changes. This type of marking of reinforced tires is often found in models for heavier passenger cars or vehicles with a constant load.
The designation Reinforced has a similar meaning and is used as an alternative form of marking of a reinforced carcass. It also indicates increased sidewall resistance to deformation and a greater margin of safety. Visually, such tires may not differ from standard ones, since all changes are hidden inside the structure. The marking in this case is the only way to identify the difference between the basic and reinforced versions.
A separate category is made up of tires marked C, LT or Commercial. This version is intended for light commercial vehicles and has a fundamentally different carcass compared to passenger tires. The number of cord layers and the thickness of the sidewall in such models are much greater, which allows them to withstand constant loads without losing their shape. Even with the same size, such tires operate in a different deformation mode, which is reflected in the corresponding marking.
The CP marking is used for tires designed for motorhomes and vehicles with a high constant mass. In this case, the carcass is optimized for long-term static load without movement, and the sidewall retains its shape under long-term pressure. This marking of reinforced tires allows you to separate them from standard models, which, under similar conditions, lose geometric stability more quickly.

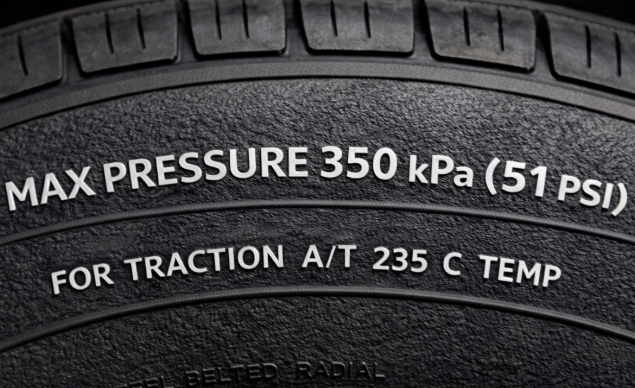

The permissible tire pressure is indicated in the marking as a maximum value, which is usually indicated on the sidewall as Max Pressure or Maximum Inflation Pressure. This value is applied during production and reflects the maximum pressure at which the carcass and the bead area withmaintain integrity without plastic deformation. The permissible pressure marking is not a setting for daily operation, but sets a design limit for the tire material.
The physical role of pressure is to form the internal rigidity of the tire. The air inside the carcass acts as an element that maintains the shape and distributes the load between the cord and the tread. As the pressure increases, the deformation of the sidewall decreases, but the stress in the bead area increases. The maximum permissible pressure indicated in the marking corresponds to the limit beyond which the risk of violating the carcass structure or bead tightness increases.
The permissible pressure marking does not take into account the mass of a particular vehicle and does not replace the values determined by the vehicle manufacturer. It shows to what level the tire can be inflated without destruction, but does not determine the optimal mode of contact with the road. For this reason, the Max Pressure value is always significantly higher than the operating pressure used under normal conditions.
Additional technical designations, such as Load Range or Ply Rating, indicate the conditional strength class of the carcass and the number of cord layers in equivalent terms. These markings were historically used to compare tires in terms of durability and are still used mainly in the commercial segment today. They do not indicate the actual number of layers, but reflect the level of permissible stresses in the structure.
The marking of technical limitations may also contain information about the maximum load at a certain pressure, which is given in the form of numerical values. Such data allows you to correlate pressure and mass within the established limits, but does not change the basic characteristics of the tire. All these designations perform one function, they outline the limits at which the material operates in a different, uncontrolled mode.

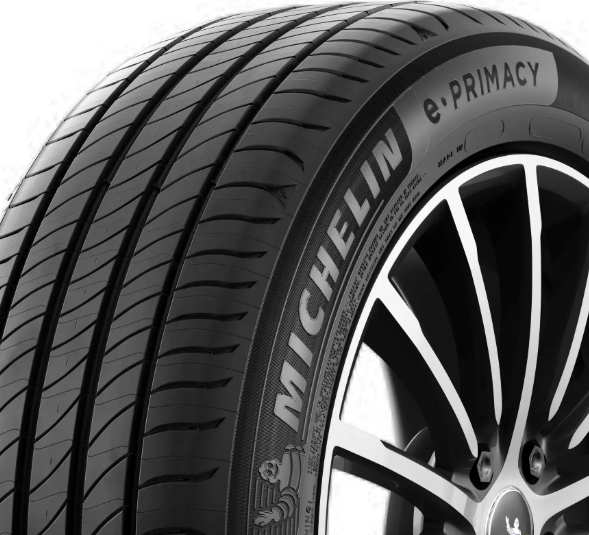

Tires designed for electric vehicles and hybrids have separate marking elements that reflect the changed requirements for load, noise and wear that arise due to a different mass-power model of the vehicle. Such markings are applied to the sidewall in the same way as standard markings, but contain additional symbols or letter indices that directly indicate the adaptation of the tire design to the specifics of the electric transmission.
The mass of an electric vehicle is in most cases higher than the mass of a similar vehicle with an internal combustion engine due to the battery pack located in the lower part of the body. This means a constantly increased vertical load on all four wheels regardless of the driving mode. The marking of tires for electric vehicles often includes an increased load index or a separate designation EV, which signals a different rigidity of the carcass and a changed cord thickness. Such tires are designed for long-term loading without increasing residual deformations of the sidewall.
The torque of the electric motor is available almost instantly and is transmitted to the wheels without the delays characteristic of classic transmissions. This creates a different load regime on the tread and shoulder zones of the tire. The marking of tires for electric vehicles in this case reflects the increased resistance of the tread to shear loads that occur during a sharp start. The rubber compound and block geometry are optimized to reduce micro-shears and slow down abrasion at high traction forces.
Acoustic characteristics occupy a separate place in the marking of tires for electric vehicles. The absence of engine noise makes road noise the main source of sound in the cabin, so tires for such cars often have markings indicating a reduced noise level. This can be a special EV marking or additional pictograms related to acoustic comfort. The design of such tires uses modified tread steps or internal noise-absorbing layers that reduce resonance in the tire cavity.
Rolling resistance has a direct impact on the range of an electric vehicle, so the marking of tires for electric vehicles is often associated with the optimization of this parameter. Reducing rolling losses is achieved by changing the composition of the rubber compound and the stiffness of the carcass, which is reflected in the corresponding energy efficiency classes. Such markings allow you to identify tires that minimize energy losses without exceeding the permissible grip limits.
The regenerative braking system creates additional load cycles in which the tire simultaneously works for both traction and deceleration. This changes the nature of tread wear compared to classic cars. The marking of tires for electric vehicles in such conditions is associated with increased resistance to cyclic loads and a uniform distribution of stresses across the width of the tread. Such tires have a different balance between stiffness and elasticity, which is not always reflected in standard passenger car models.
The marking of tires for electric vehicles and hybrids allows you to distinguish tires optimized for electric transmission from universal models, even if the geometric parameters coincide. Alland these designations are read as part of a single marking system, where each element reflects a specific physical requirement for the tire as a power element of the car.
